Micks Spirited 480

Build logs from members building catamarans, trimarans and other multi-hull variants.
rexd666
Site Admin
Posts: 157
Joined: Tue Dec 15, 2009 7:15 am
Location: Melbourne, Vic

Re: Micks S480

Post by rexd666 » Wed Jul 06, 2011 8:39 pm

Mick,
Good work so far, hope you can get back into it again soon.

Our chat earlier in the year made me reconsider my design choice, nothing firm yet as still a way from making a call. But Spirited 480 is a nice design and Spirited Designs have been very helpful.

Steve

teamROAM
Posts: 108
Joined: Wed Jun 09, 2010 10:03 pm
Location: Beaumaris, Tasmania

Re: Micks S480

Post by teamROAM » Sun Sep 25, 2011 6:59 pm

2011 3rd quarter update from us. Solid last month on the boat. Pretty slow first couple of months but.

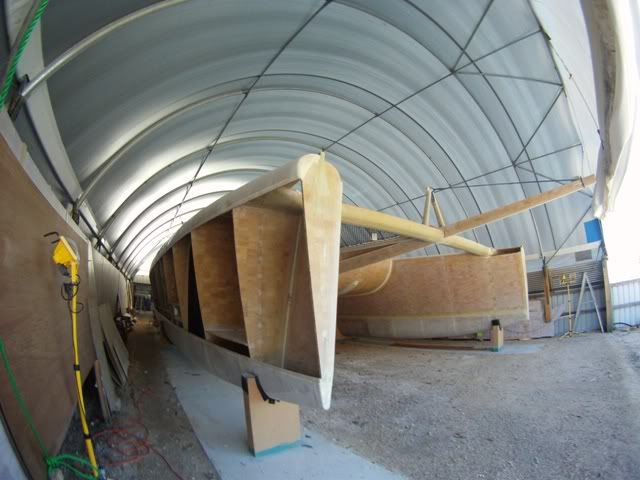

Borrowed a mates fish eye camera and managed to get the whole boat in one shot for the first time.

Weather is warming up a bit. Good temps for the big laminating job on the cabin roof.












Later
Mick

Jim
Posts: 691
Joined: Fri May 19, 2006 8:25 am
Location: Cairns

Re: Micks S480

Post by Jim » Sun Sep 25, 2011 7:18 pm

Looking good, and big.
Jim.

teamROAM
Posts: 108
Joined: Wed Jun 09, 2010 10:03 pm
Location: Beaumaris, Tasmania

Re: Micks S480

Post by teamROAM » Mon Sep 26, 2011 9:40 am

Cheers Jim,

We are enjoying it still. Basically ready to start sorting out the systems to go in the boat. Seems alot of time can be wasted trying to figure out where is the best place to source all the kit. Between working on the boat, working for the $$ for the boat dont seem to have the time for procurement.... Doing all this for the first time you seem to waste alot of time thinking about things that really shouldn't need worrying over bit we will get there I guess.

Not looking to reinvent the wheel. Just want to find a boat I like and copy their systems. Fancy a consultancy gig?

Mick

teamROAM
Posts: 108
Joined: Wed Jun 09, 2010 10:03 pm
Location: Beaumaris, Tasmania

Micks Spirited 480

Post by teamROAM » Mon Jun 11, 2012 8:12 pm

Hi All

Long time no update from us. Bunch of pics here to make up for it.

Still enjoying it and all going good. Days are a bit short and cold in Tas at the moment.

I have 4 hold up areas at the moment:
-Still sorting rudder bearings = back steps are still loose and engine bays are not complete
-Don’t have my main sheet track = back is still of aft cockpit module. Out for qoutes at the moment so should be sorted soon.
-Refrigeration = incomplete corner in galley
-Plumbing = Main and Ensuite Head are basically empty. Really just have to make a start here....

Hope everyone else is smashing out their builds.

Shout outs for Mike and Paul for their efforts on batteries, hatches and solar panels. Cheers guys.

Enjoy
Yeewww Mick

Prodder and one of the rudders

Installing the prodder

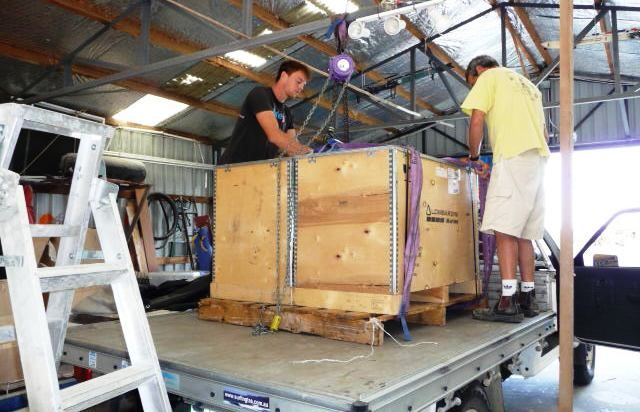

Christmas presents to myself. Little bro and old man getting them rigged up to get off the ute.

Loambardini LDW 1404's

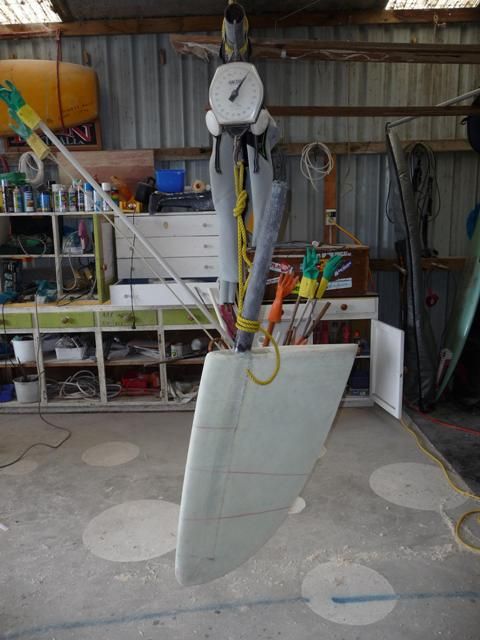

Load testing the prodder...

They feel heavier than 10kg

Losing the plot....

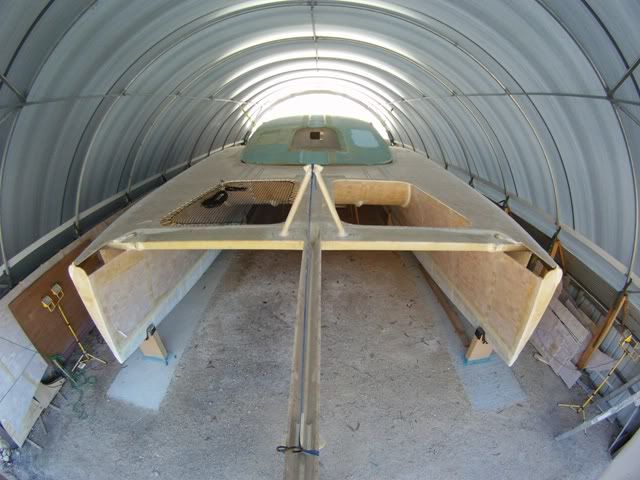

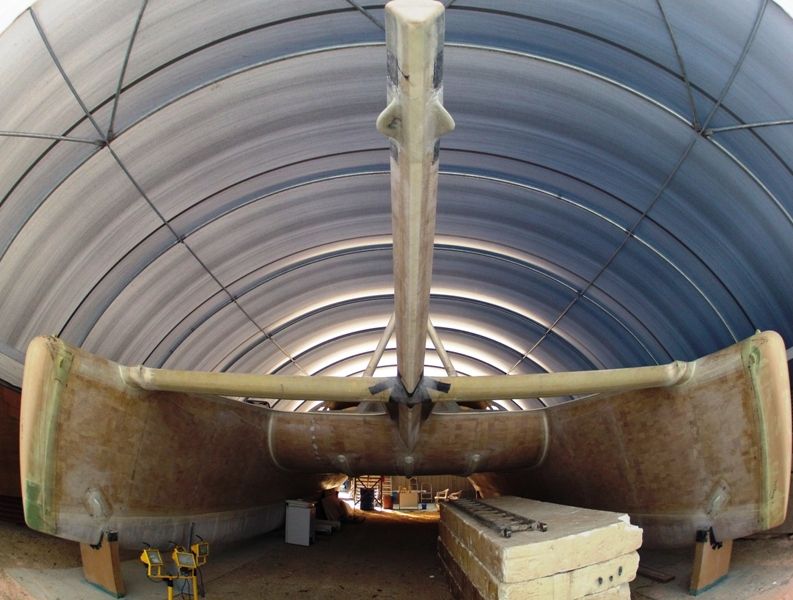

External shots taken with fish eye lens that distorts the frame a bit but only way to get the boat in the shot in the shed

Bam!!

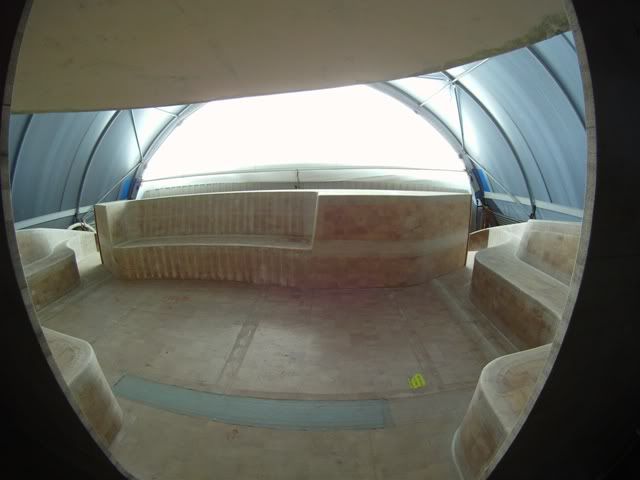

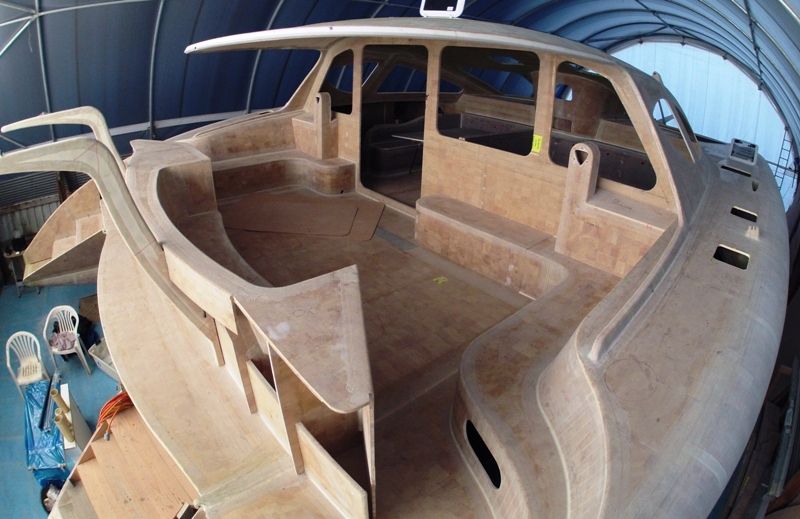

Can't wait to finish the back module to tidy up the stern externally.

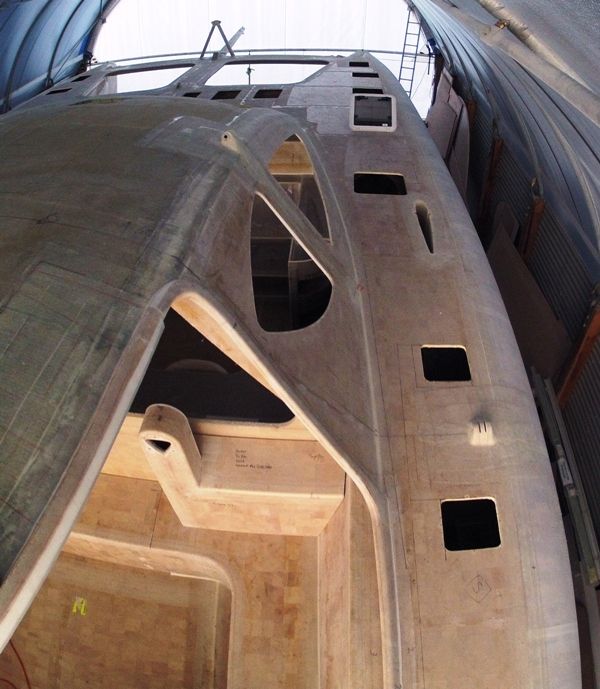

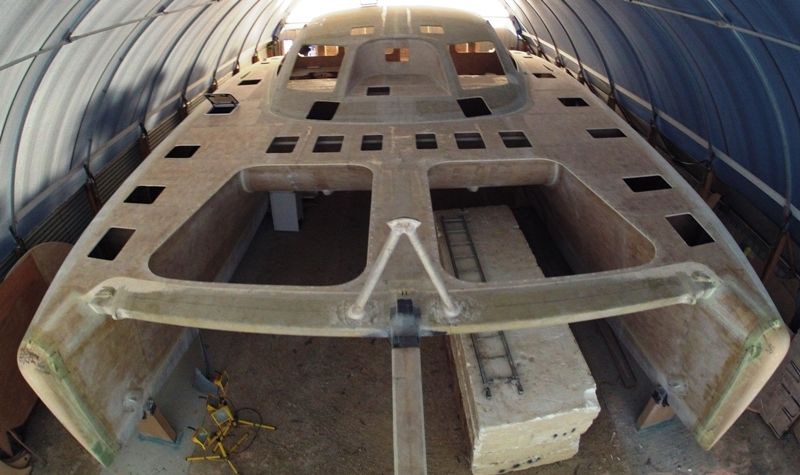

So many cutouts to sort our... makes a few trip hazzards for getting round on deck at the moment...

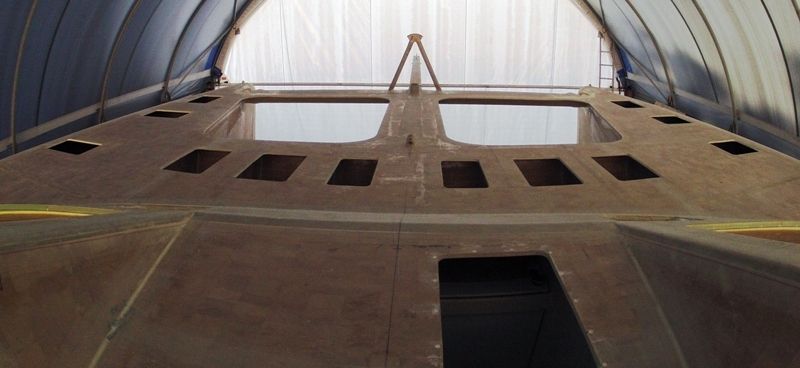

Shot from mast step area

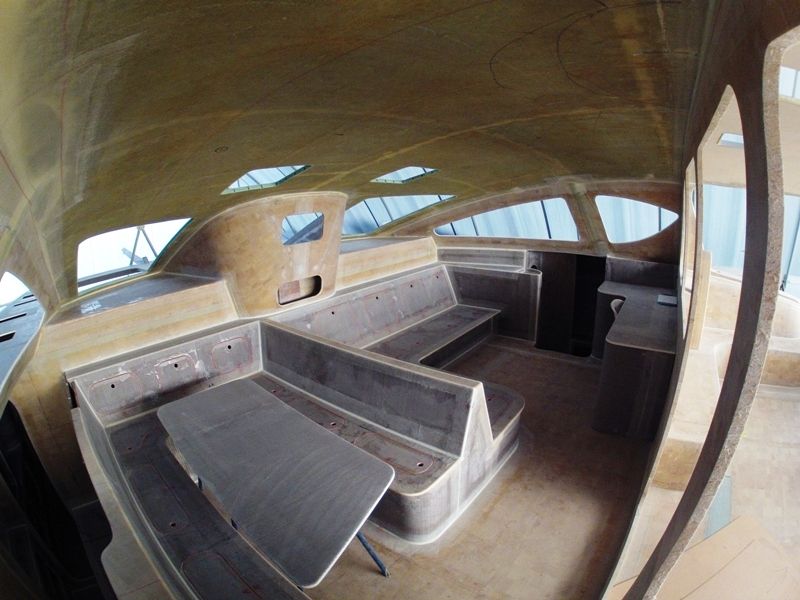

Seperate lounge and dining. Mum taught me to sit at the table when I eat...

Galley up is for booze cruizers and weekenders, liveaboards go galley down haha

Main head and shower in port stern. Need to start on this eventually...

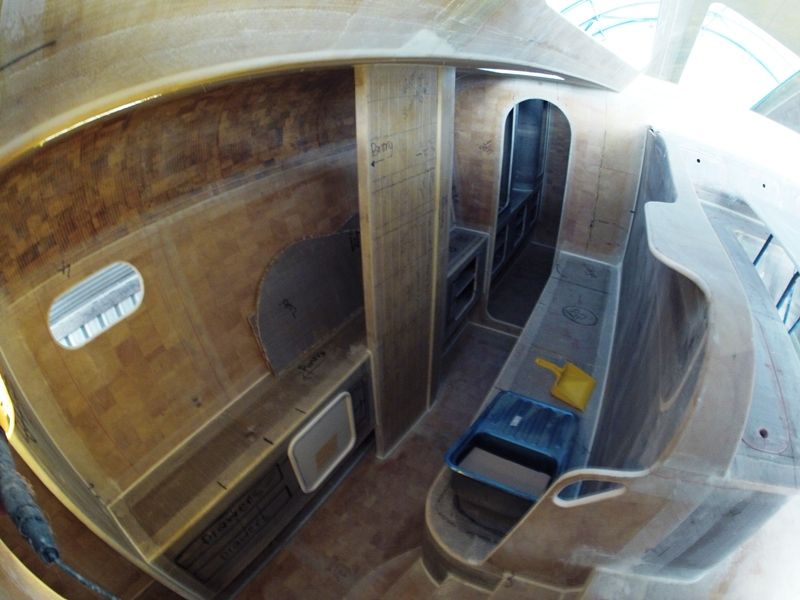

Another shot of the galley. Need to build in behind the daggerboard case.

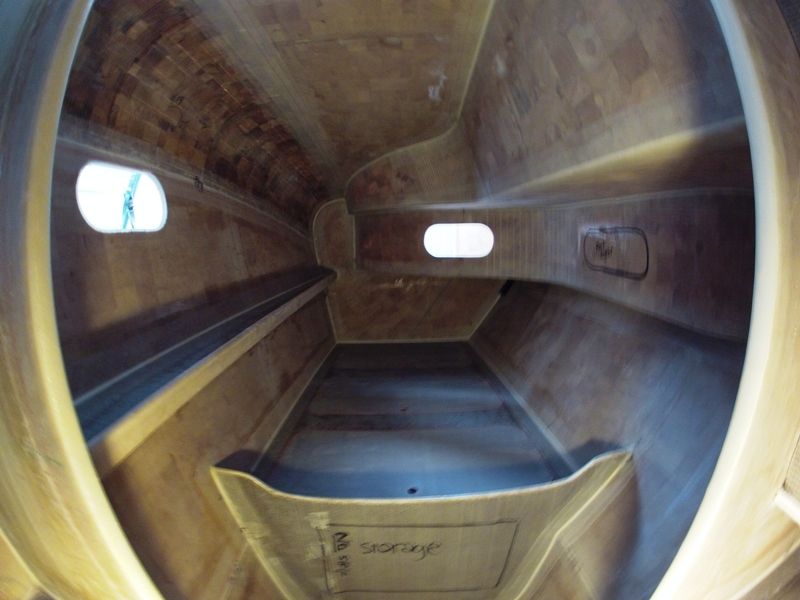

Guest cabin = port fwd

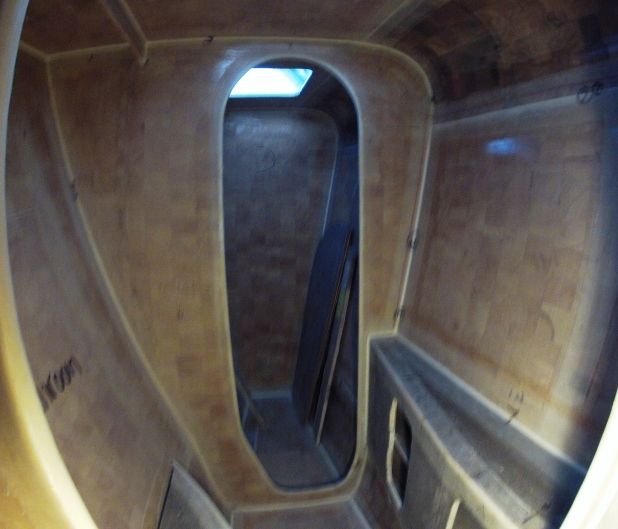

Ensuit head and shower

Stbd companionway with little bookcase feture

Stbd aft guest cabin

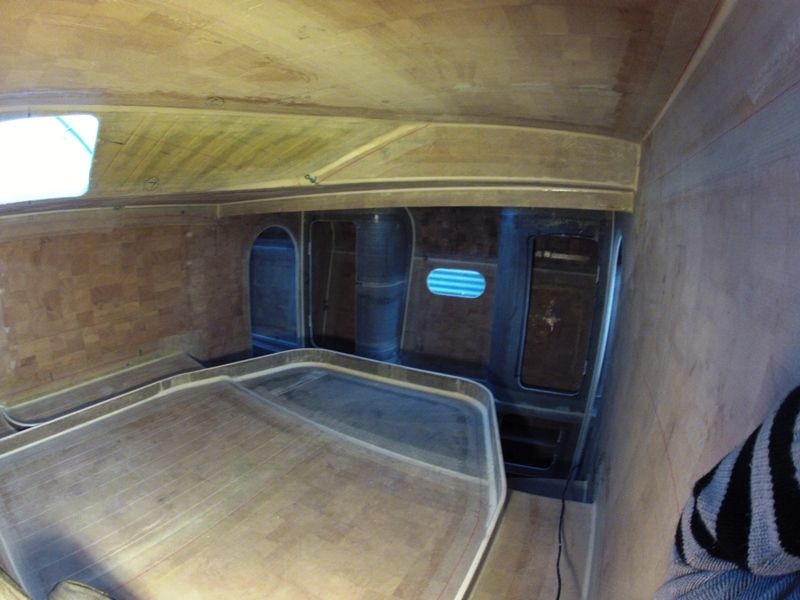

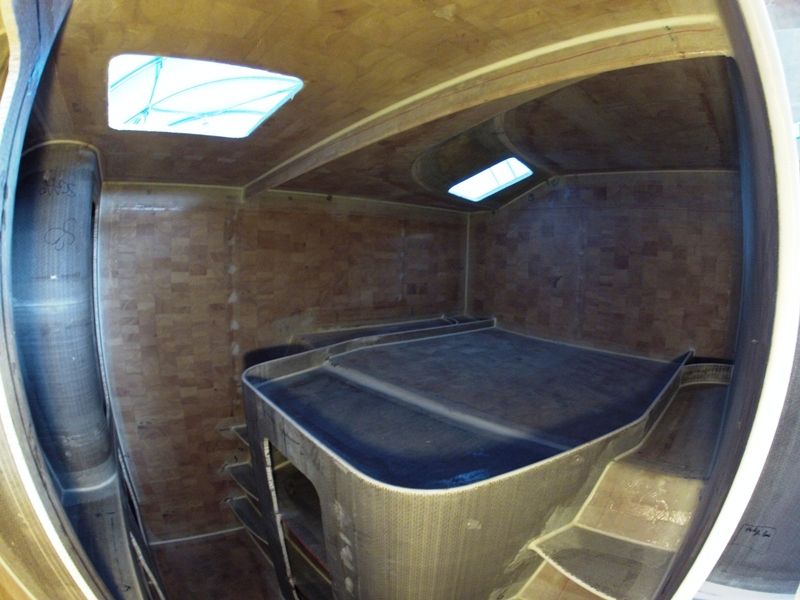

Space in master. This area is commenly known as "Mel's Domain".

Shot from master bed looking outboard.

puremajek
Posts: 751
Joined: Thu May 04, 2006 7:36 pm
Location: Brisbane Australia
Contact:

Re: Micks Spirited 480

Post by puremajek » Mon Jun 11, 2012 8:57 pm

Wow...

Beautiful job, thank you for showing. Look forward to the next round already.

James
James
______________________________________________
http://www.diycatamaran.com
______________________________________________

teamROAM
Posts: 108
Joined: Wed Jun 09, 2010 10:03 pm
Location: Beaumaris, Tasmania

Re: Micks Spirited 480

Post by teamROAM » Mon Jun 11, 2012 9:32 pm

Cheers James!

Just like parking the boat in the pen at the marina SLOW IS PRO. At least that is what I like to tell myself.......

mahnamahna
Posts: 579
Joined: Wed Aug 02, 2006 4:48 pm
Location: Gosford NSW

Re: Micks Spirited 480

Post by mahnamahna » Wed Jun 13, 2012 9:01 pm

Love your work Mick, you are flying through it. It looks great. You must be able to stand tools up in your resin it must be so cold down there. Keep at it!

Mick@itc
Posts: 69
Joined: Sat Jan 29, 2011 1:29 am
Location: Melbourne Aust

Re: Micks Spirited 480

Post by Mick@itc » Wed Jun 13, 2012 9:01 pm

Nice job Mick

What are the dimensions of the dining area...what size is the table?

Thanks
Mick
Mick
If all you have is a hammer...everything is a nail!

teamROAM
Posts: 108
Joined: Wed Jun 09, 2010 10:03 pm
Location: Beaumaris, Tasmania

Re: Micks Spirited 480

Post by teamROAM » Thu Jun 14, 2012 8:01 pm

Hi Paul

The west fast hardener is all good during the days. I took a phone call the other day and and some resin I had mixed up went off on me in not much more than 15 mins. Over night gets pretty cold so I usually put spot lights on any big jobs we do in the arvo to get them touch dry before leaving overnight. Days are a bit short at the moment though. We hardly get any frosts where we live, gold coast of tas!!

ITC

I'm at sea at the moment. I'll grab you some dimensions in a few days. Been a couple of years since we did the design now so can't remember exactly off the top of my head.

Mick
